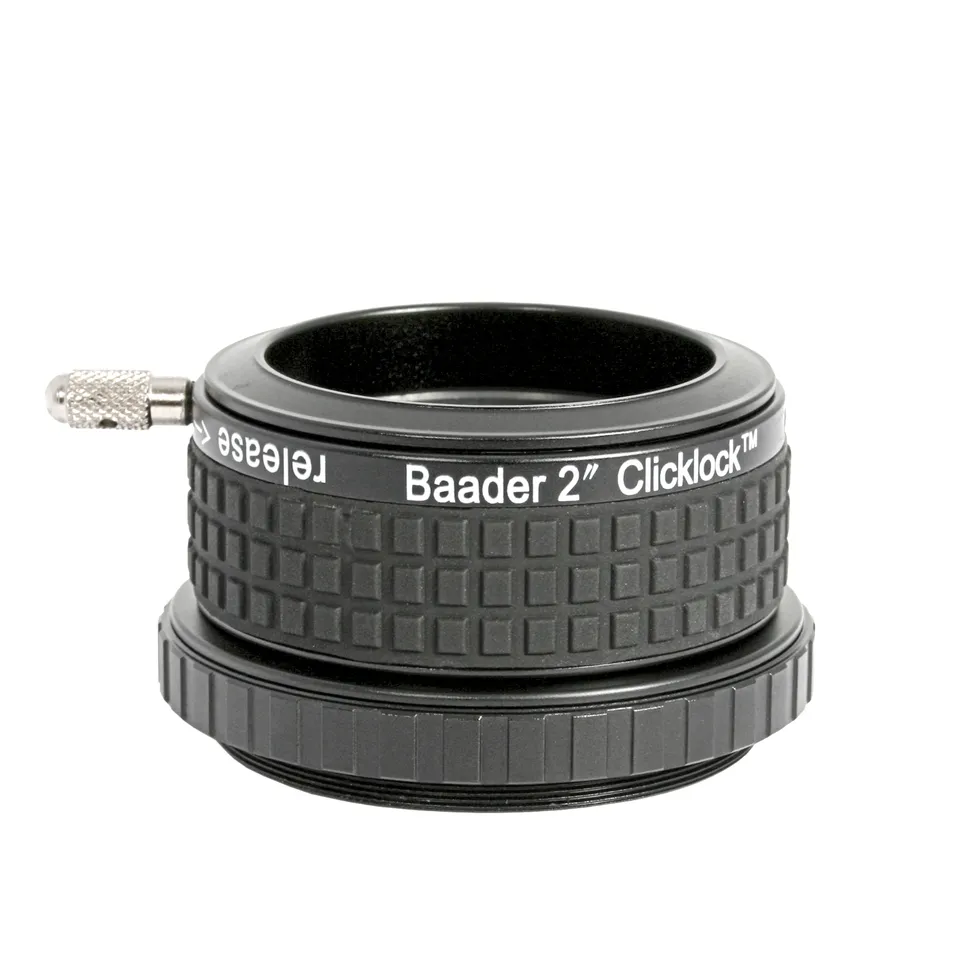

Baader Planetarium 2″ ClickLock Clamp to M72a – for Takahashi

The Baader 2″ ClickLock M72a Clamp is a premium 2″ accessory holder designed for compatible Takahashi telescope and focuser systems using an M72 × 1 connection. It provides a fast, secure and convenient way to attach 2″ eyepieces, diagonals and other accessories while taking advantage of Baader’s renowned ClickLock clamping system.

Baader’s ClickLock mechanism makes changing accessories quick and effortless. A small 20° rotation of the large, knurled locking lever is all that is required to securely clamp or release a 2″ accessory. This eliminates the need to repeatedly tighten a conventional thumbscrew and makes changing eyepieces or other accessories particularly convenient during nighttime observing.

The integrated ratchet mechanism provides both audible and tactile feedback as the clamp is operated. You can hear and feel the mechanism move into position, allowing you to determine whether the clamp is open or securely closed without having to look at it in the dark. This makes the ClickLock especially practical when changing accessories under low-light observing conditions.

A key feature of the ClickLock design is its thick-walled hard-bronze compression ring. Instead of applying concentrated pressure to the accessory barrel at a single point, the compression ring provides a secure and evenly distributed grip around the accessory. This helps prevent scratches, dents and pressure marks on expensive eyepieces, diagonals and other optical equipment.

The hard-bronze compression ring is designed to maintain its shape even after many years of use, providing reliable and consistent clamping performance over the long term. This makes the ClickLock particularly well suited to observers who frequently change between different 2″ accessories.

The M72a connection is designed for compatible Takahashi systems using an M72 × 1 interface. Takahashi Europe uses M72 × 1 connections throughout its larger telescope and accessory systems. For example, the Takahashi TOA-130 and TOA-150 systems use M72 × 1 interfaces in conjunction with the TOA-645 field flattener.

This makes the M72a ClickLock a useful solution for compatible Takahashi configurations where a secure 2″ visual accessory connection is required. Depending on the telescope and configuration, the ClickLock may be used directly with the appropriate M72 × 1 connection or as part of a Takahashi accessory configuration using the corresponding mechanical adapter.

Once installed, the ClickLock provides a straightforward and secure interface for standard 2″ accessories. Whether you are using a 2″ eyepiece, star diagonal, filter accessory or another compatible component, the mechanism allows it to be fitted and removed quickly while maintaining a firm grip during use.

The combination of fast one-handed operation, positive locking feedback and gentle handling of valuable optical accessories makes the Baader 2″ ClickLock M72a a practical upgrade for compatible Takahashi telescope setups.

With the Baader ClickLock system, changing accessories becomes a simple and intuitive operation. The robust construction, M72 × 1 connection and proven ClickLock mechanism provide a dependable accessory connection for regular observing, allowing you to spend less time adjusting your equipment and more time under the stars.
