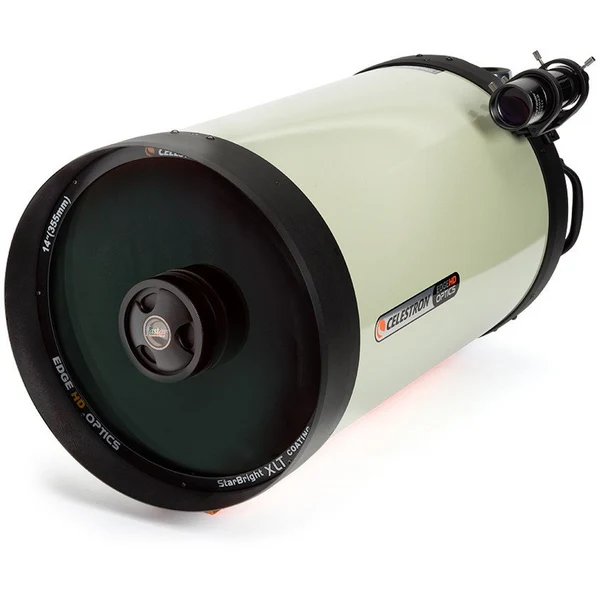

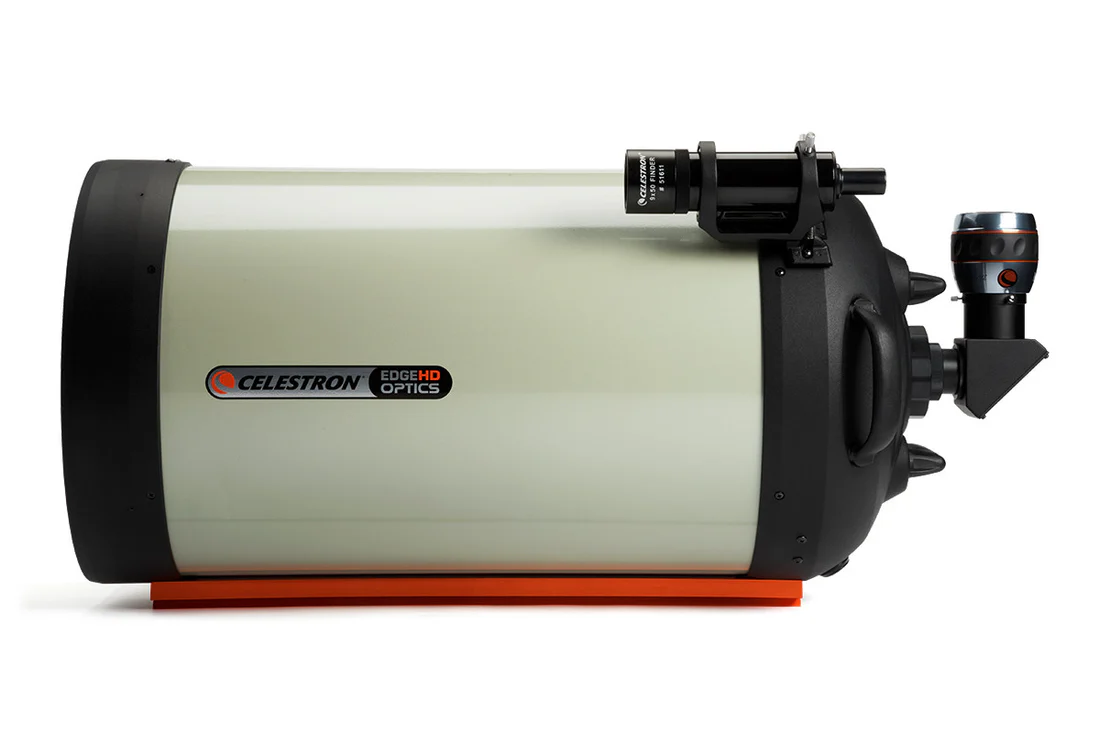

Celestron EdgeHD 14″ Optical Tube Assembly

The Celestron EdgeHD 14″ Optical Tube Assembly represents the flagship of Celestron’s Schmidt-Cassegrain range and the largest aperture currently available in the EdgeHD system. It is designed for experienced astronomers who require a single optical tube capable of delivering both high-resolution visual performance and advanced deep-sky imaging capability.

At its core is a 356mm (14-inch) Schmidt-Cassegrain optical system operating at a native focal length of 3910mm (f/11). This combination of large aperture and long focal length places the instrument firmly in observatory-class territory. The aperture provides the resolving power needed to separate extremely fine planetary detail while also bringing faint deep-sky structures into reach that are inaccessible to smaller instruments.

Under dark skies, the telescope excels at revealing structure within galaxies, resolving globular clusters into dense stellar fields, and exposing fine detail in planetary nebulae. The increased image scale provided by the long focal length makes it particularly effective for high-resolution work, especially on compact deep-sky objects.

Optical Design and Field Correction

The EdgeHD system is designed to eliminate the inherent optical limitations of traditional Schmidt-Cassegrain telescopes, specifically field curvature and off-axis coma. Internal corrective lenses produce a flat, coma-free focal plane, ensuring sharp star images across the entire field of view.

This is especially important for astrophotography with modern large-format sensors, where uncorrected SCT designs typically require additional field flatteners. With the EdgeHD system, correction is built directly into the optical path, simplifying imaging setups and improving consistency across the frame.

Understanding Field of View in a 14″ SCT

While the EdgeHD 14″ is capable of exceptional light gathering and resolution, its long 3910mm focal length results in a naturally narrow field of view. This is an important characteristic of the design rather than a limitation in optical quality.

As a result, the telescope is optimised for small to medium-sized astronomical targets, where magnification and detail are more important than wide framing. Objects such as planets, the Moon, globular clusters, planetary nebulae, and compact galaxies are where the system truly excels.

Larger deep-sky objects — such as expansive nebulae or wide open clusters — remain observable, but will not fit within a single field of view. In these cases, observers typically focus on brighter regions, structural detail, or use mosaic imaging techniques for astrophotography.

This distinction is important: the EdgeHD 14″ is not a wide-field instrument, but a high-resolution, high-contrast optical system designed for detailed study of smaller targets at extreme clarity and scale.

Mechanical and Imaging Features

Celestron has integrated several features specifically designed to support long-exposure imaging and high-magnification stability.

Primary mirror locks secure the optical alignment after focusing, reducing image shift and helping maintain critical focus during extended imaging sessions or when the telescope crosses the meridian. This is particularly valuable at long focal lengths, where even small mechanical movements can affect image sharpness.

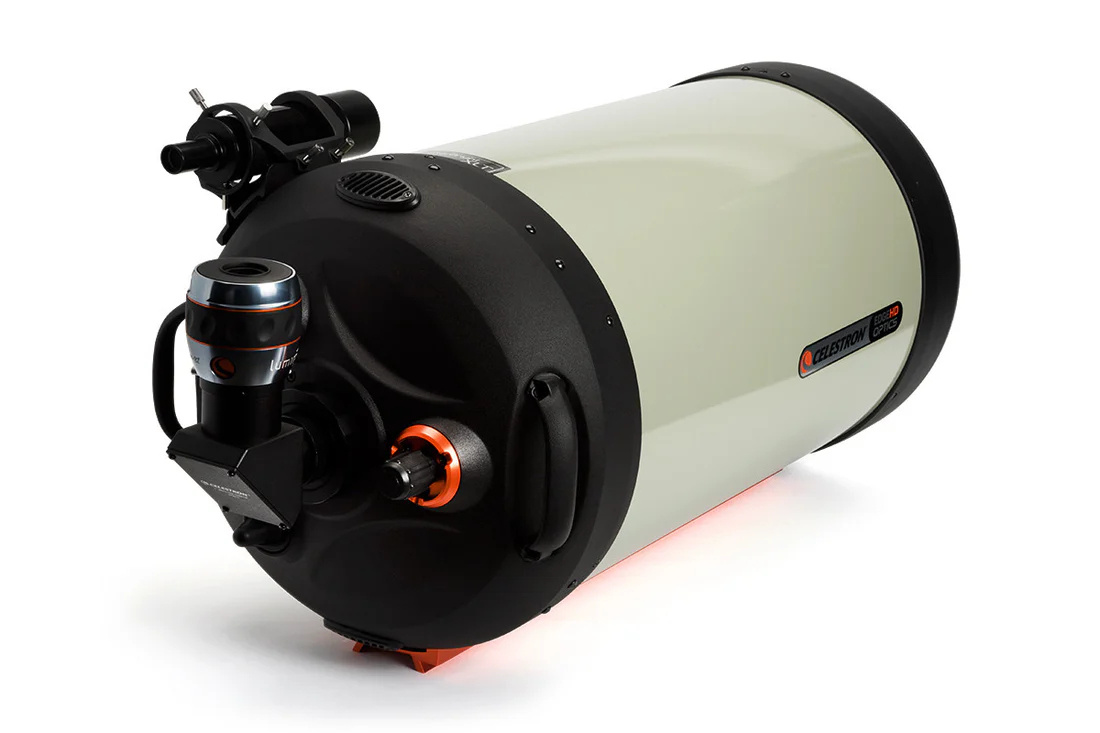

Rear ventilation ports with integrated filters assist thermal equalisation by allowing air circulation behind the primary mirror. This reduces internal tube currents and helps the system reach ambient temperature more quickly, improving early-session image stability.

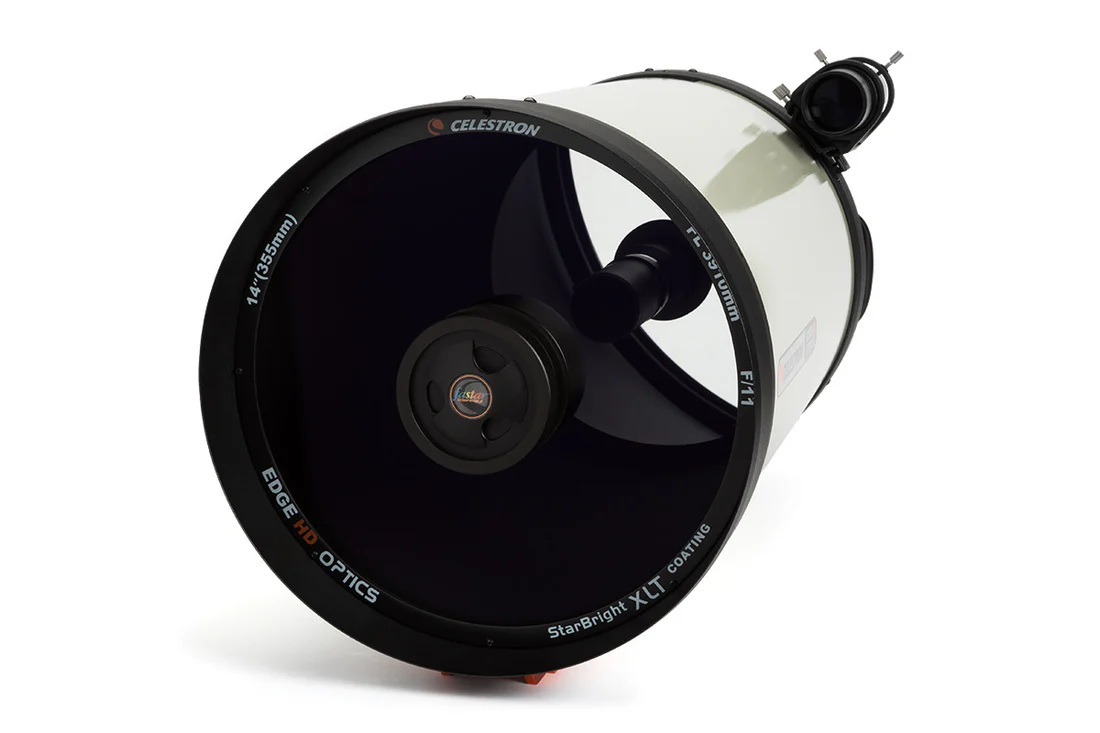

The optical system is coated with Celestron’s StarBright XLT coatings, maximising light transmission and contrast across the visible spectrum. Combined with the large aperture, this produces bright, high-resolution views with strong fine-detail performance.

Imaging Flexibility

The EdgeHD 14″ is Fastar compatible, allowing the secondary mirror to be replaced with an optional HyperStar system. This converts the telescope into an ultra-fast f/2 wide-field imaging platform, dramatically reducing exposure times and expanding its versatility.

This dual capability — long focal length high-resolution imaging and ultra-fast wide-field capture — makes the system unusually flexible for a telescope of this aperture class.
