Be the first to review “Takahashi TOA-130NS Apochromatic Refractor (OTA Only)” Cancel reply
Downloads & Manuals
Specifications
Additional information
Design
Telescope Type
Refractor
Optical Design
Apochromat (APO)
Lens Configuration
Doublet
Optics
Aperture (mm)
125
Focal Length (mm)
975
Focal Ratio (f/-)
7.8
Image Circle (mm)
44
Use Case
Visual Astronomy & Astrophotography
Features

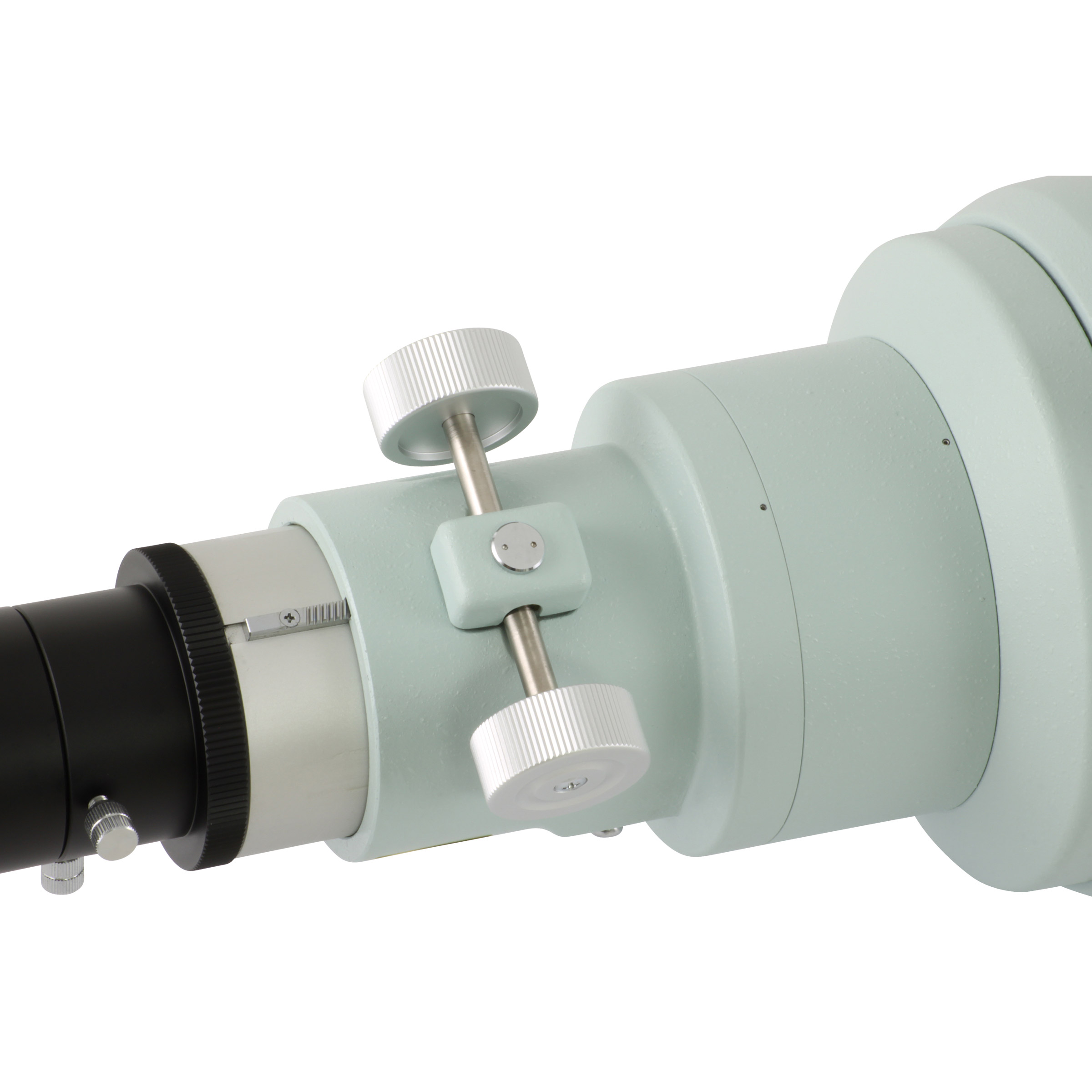

Focuser Type
Dual-Speed Rack-and-Pinion
Focuser Size
1.25" Adapter Ring, 2" (50.8mm)
Rotation
Yes, Camera Angle Adjuster
Field Flattener
Option Available
Reducer
Option Available
Finder
Finder Shoe Included
Diagonal
No
Focal Length (mm)
No
Mounting Rings
Yes, Included
Mounting Plate
Vixen-style
Dew Shield
Yes
Carrying Case
Yes
Performance
Light Gathering Capacity
319x
Resolving Power (arcsec)
0.93
Stellar Magnitude Limit
12.5
Optimal Magnification Range
20x – 250x
Target Suitability (Visual / Imaging)
Sun
Excellent / Excellent, Only with Specific Solar Accessories
Moon
Excellent / Excellent
Planets
Excellent / Excellent
Double Stars
Excellent / Excellent
Open Clusters
Excellent / Excellent
Globular Clusters
Well-Suited / Well-Suited
Nebulae
Well-Suited / Excellent
Galaxies
Well-Suited / Excellent
Comets
Excellent / Excellent
Build
Tube Type
Closed
Tube Material
Carbon Fibre
Lens Material
ED Glass (Extra-low dispersion)
Lens Coating
Fully Multi-Coated
Internal Baffling
Yes
Blackened Interior
Yes
Tube Diameter (mm)
131
Tube Length (Extended, cm)
100
Tube Length (Carrying, cm)
88.5
Tube Weight (kg)
4.7
Total Weight (kg)
5.8
Value / Ownership
Portability
Good
Ease of Setup
Very Easy
Maintenance Requirements
Minimal
Brand Reputation
Well Regarded
Resale Value
Good
