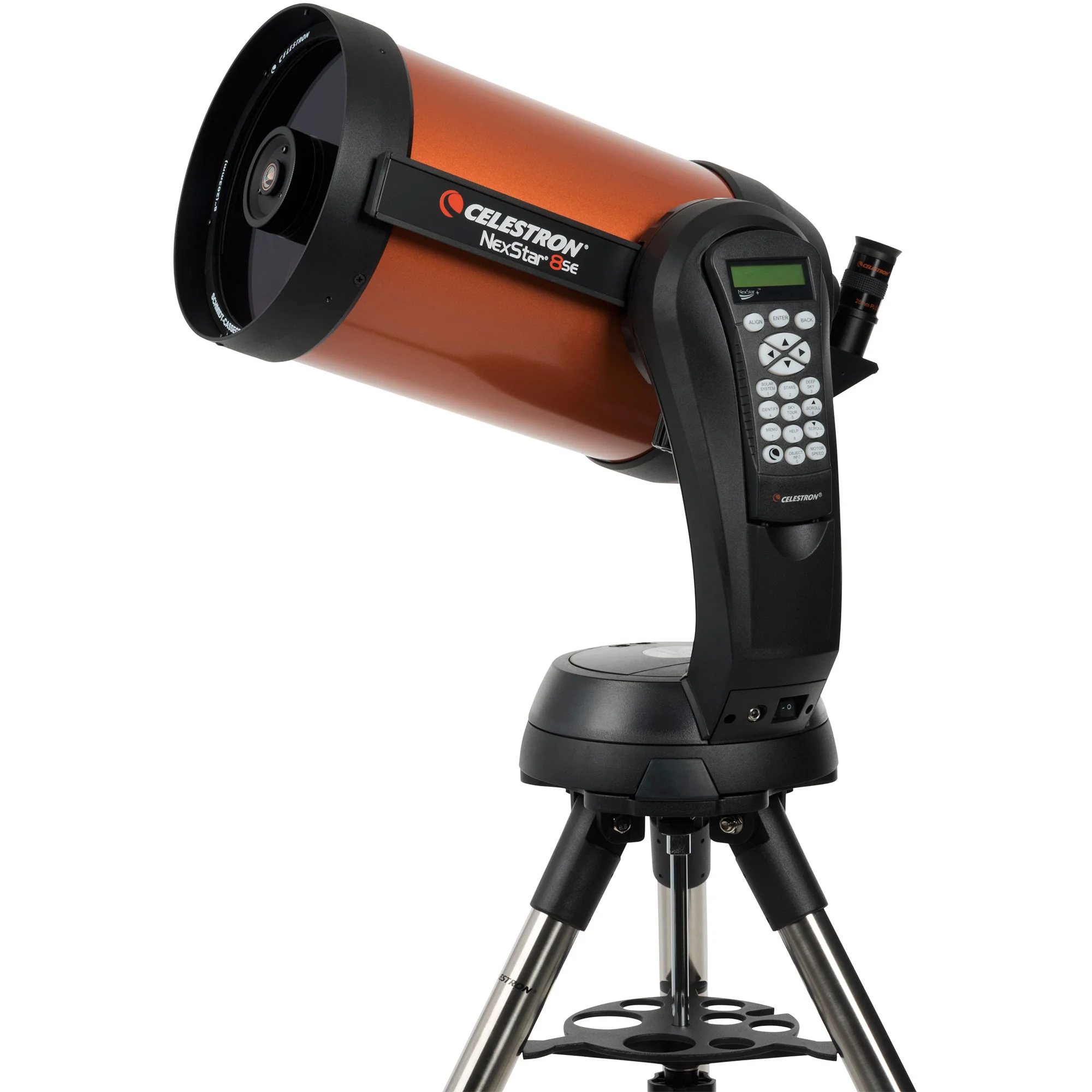

Celestron NexStar 8SE – Computerized Telescope

The Celestron NexStar 8SE is a widely used 8-inch Schmidt-Cassegrain telescope system that combines a 203mm aperture optical tube with a fully computerised single-arm GoTo mount. It is designed as a versatile, user-friendly platform that supports both visual astronomy and entry-level astrophotography, with flexibility depending on configuration and setup.

At its core is a 203mm (8-inch) Schmidt-Cassegrain optical system with a 2032mm focal length, operating at f/10. This long focal ratio makes it particularly well suited to high-magnification observation of the Moon, planets, and double stars, while still providing enough light-gathering capability to observe brighter deep-sky objects such as globular clusters, planetary nebulae, and selected galaxies.

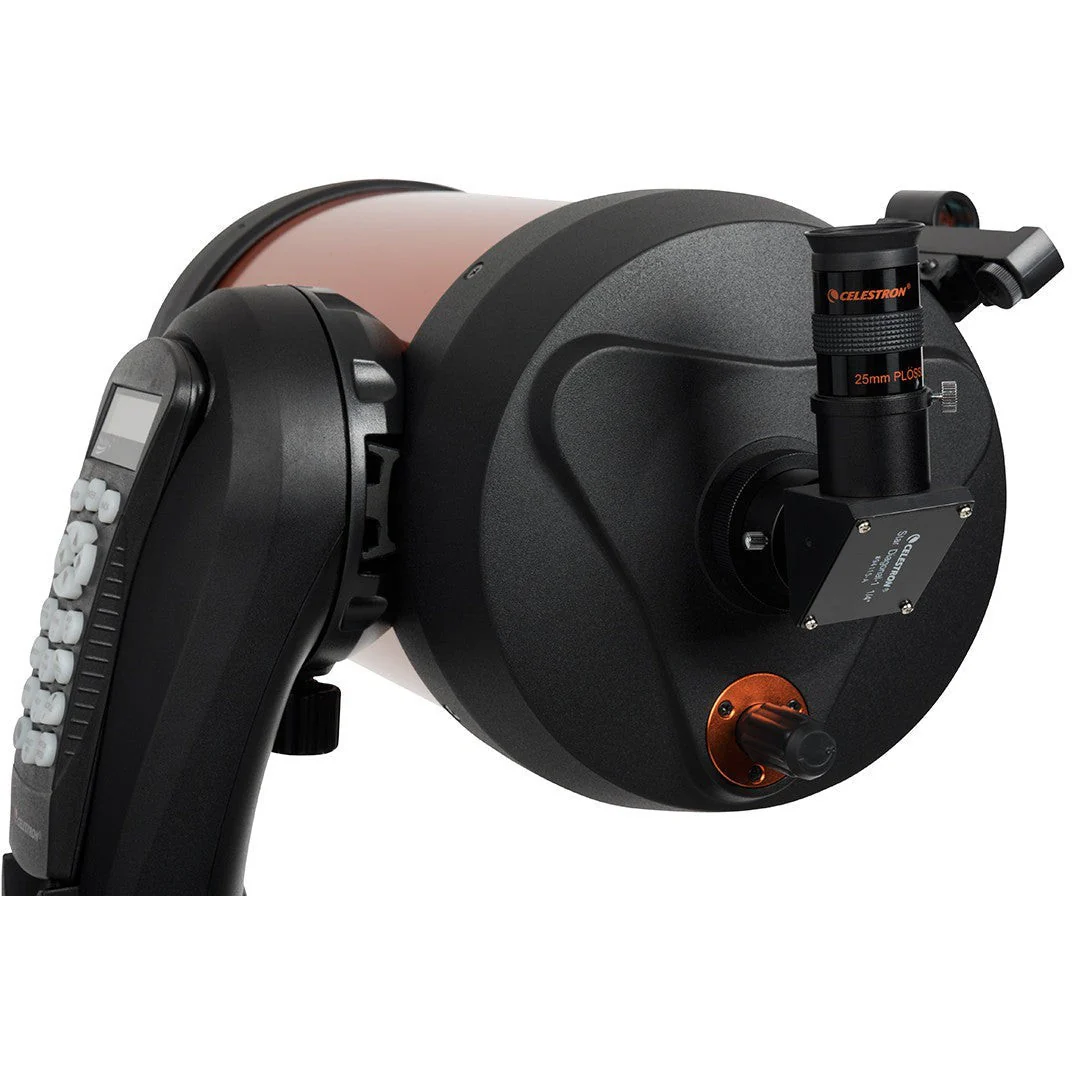

The optical design uses a spherical primary mirror paired with a Schmidt corrector plate at the front of the tube. This folded optical path allows a long effective focal length in a compact tube, making the system significantly more portable than a traditional long refractor or Newtonian of similar focal length. Celestron’s StarBright XLT coatings further enhance light transmission and contrast across the visible spectrum.

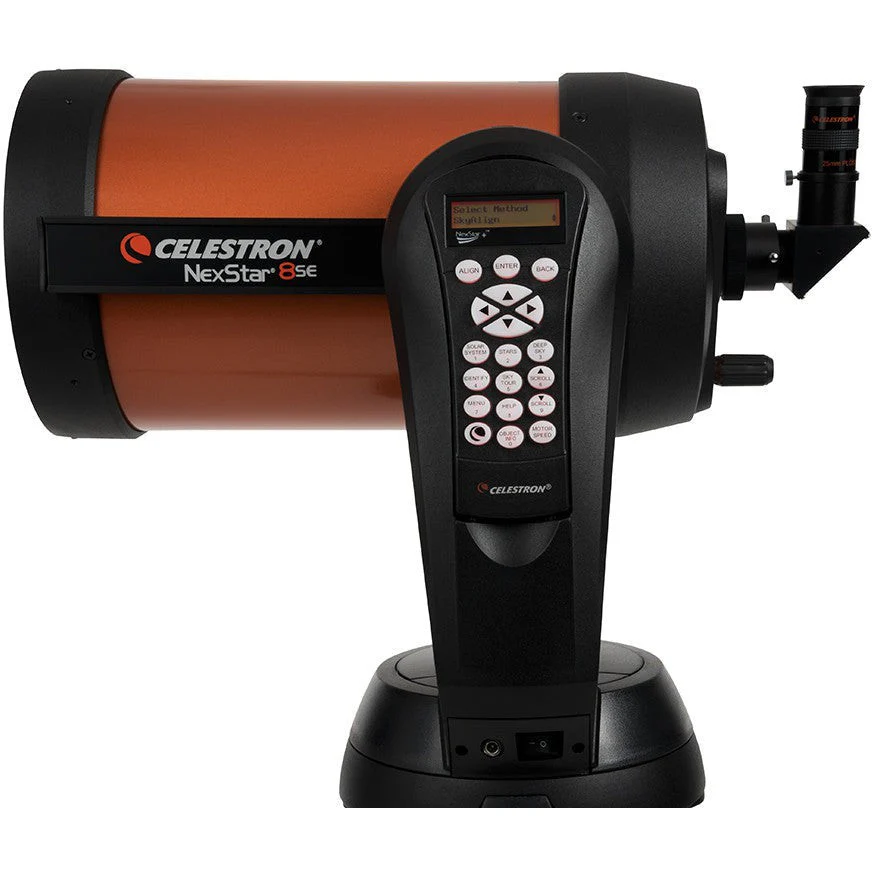

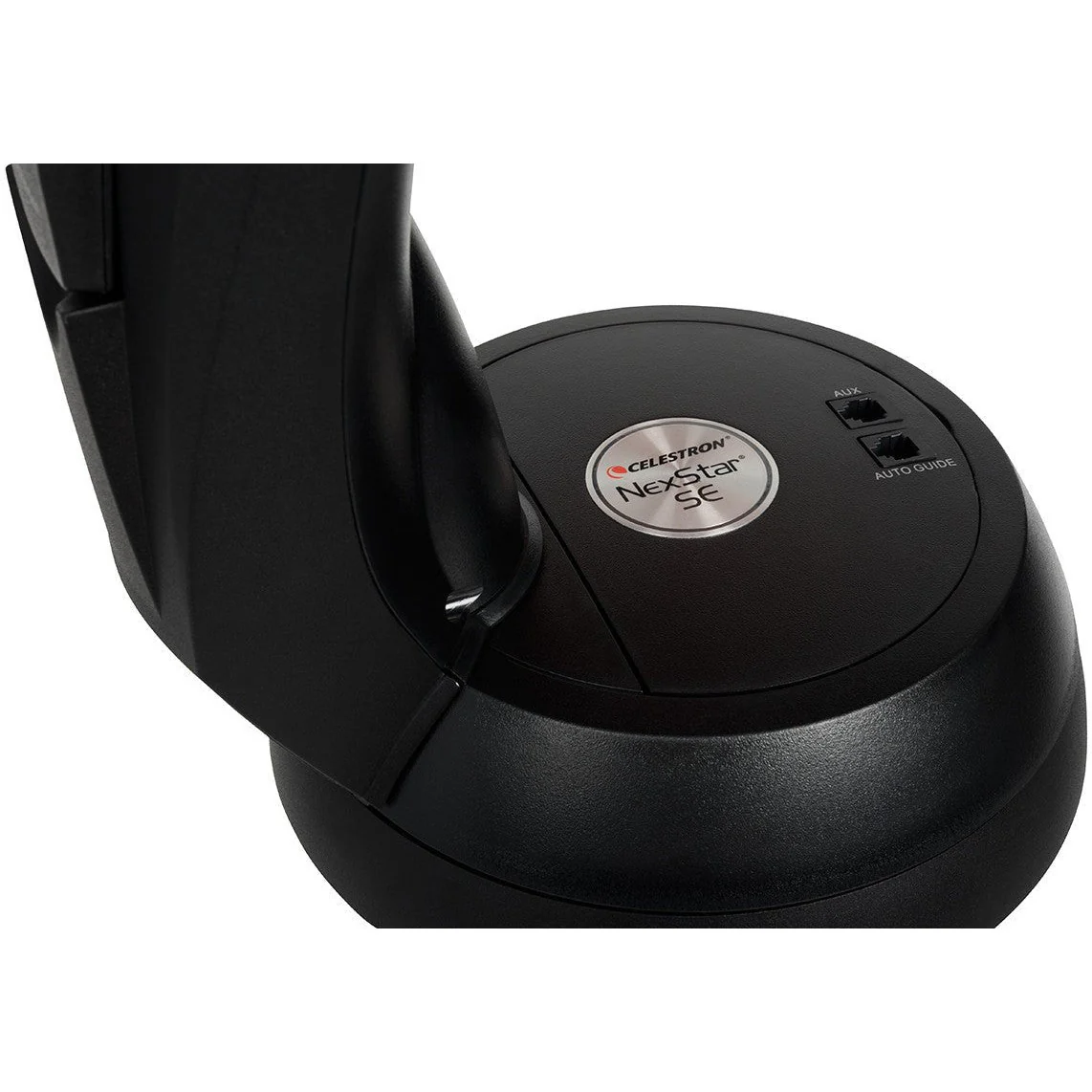

The NexStar SE mount is a computerised single-arm fork design operating in alt-azimuth mode. Using Celestron’s SkyAlign system, the mount can automatically align on the night sky and track celestial objects across the field of view, providing access to a database of over 40,000 objects. In this configuration, the system is particularly well suited to visual observation and short-exposure astrophotography of bright targets, such as the Moon, planets, and bright star clusters, where field rotation is not a limiting factor. With the optional Celestron SkyPortal WiFi Module, the telescope can be operated using the SkyPortal app or SkySafari from a smartphone or tablet.

For users wishing to extend imaging capability, the NexStar SE mount can optionally be used with an equatorial wedge (available separately for SE6/SE8 models). When configured in this way, the system operates in an equatorial alignment rather than alt-azimuth mode, significantly reducing field rotation and enabling longer-exposure astrophotography of deep-sky objects when used with appropriate guiding and imaging accessories. This transforms the SE platform into a more capable entry-level imaging system, particularly for users progressing into deep-sky astrophotography workflows.

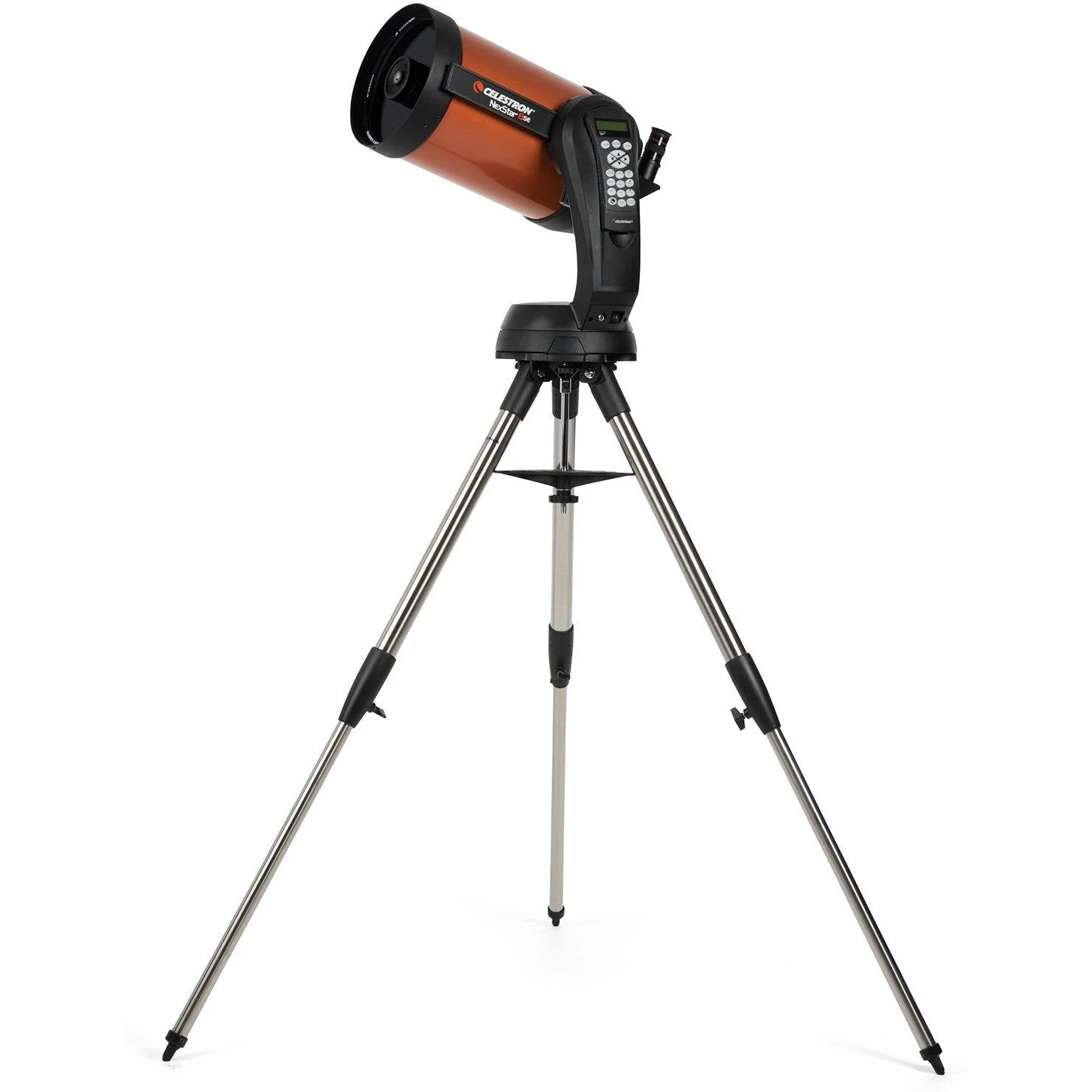

Mechanically, the system is designed for portability and ease of setup. The optical tube is detachable from the mount, allowing for simple transport and storage. Despite its compact form factor, the 8-inch aperture provides strong resolving power for detailed lunar and planetary observation, as well as meaningful deep-sky performance under suitable observing conditions.

Overall, the NexStar 8SE functions as a flexible hybrid system: primarily optimised for visual astronomy, but with genuine entry-level astrophotography capability that can be expanded significantly through the use of an equatorial wedge and appropriate imaging accessories.
