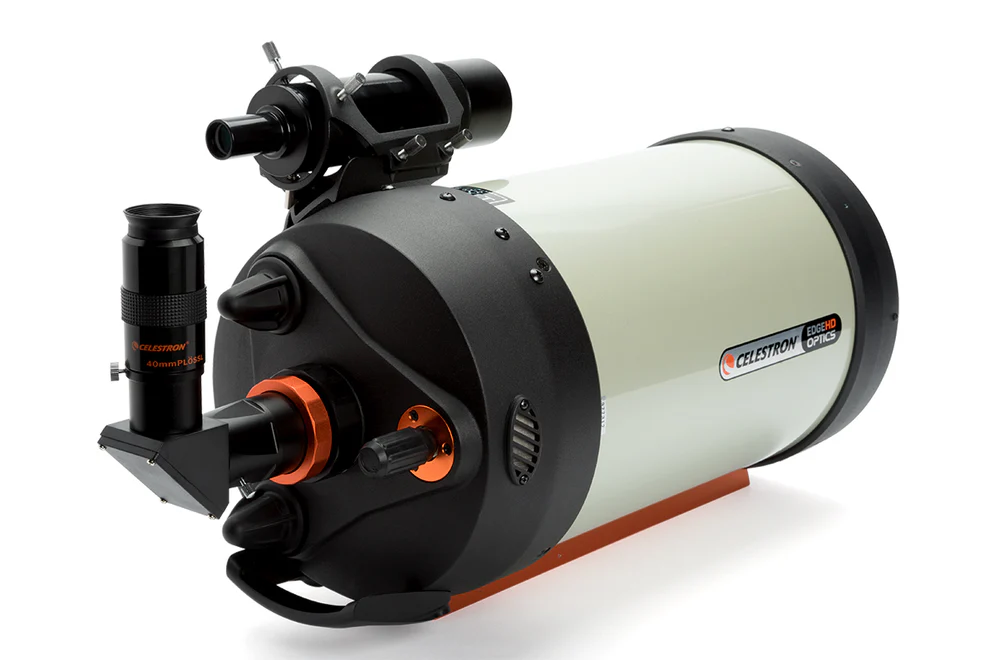

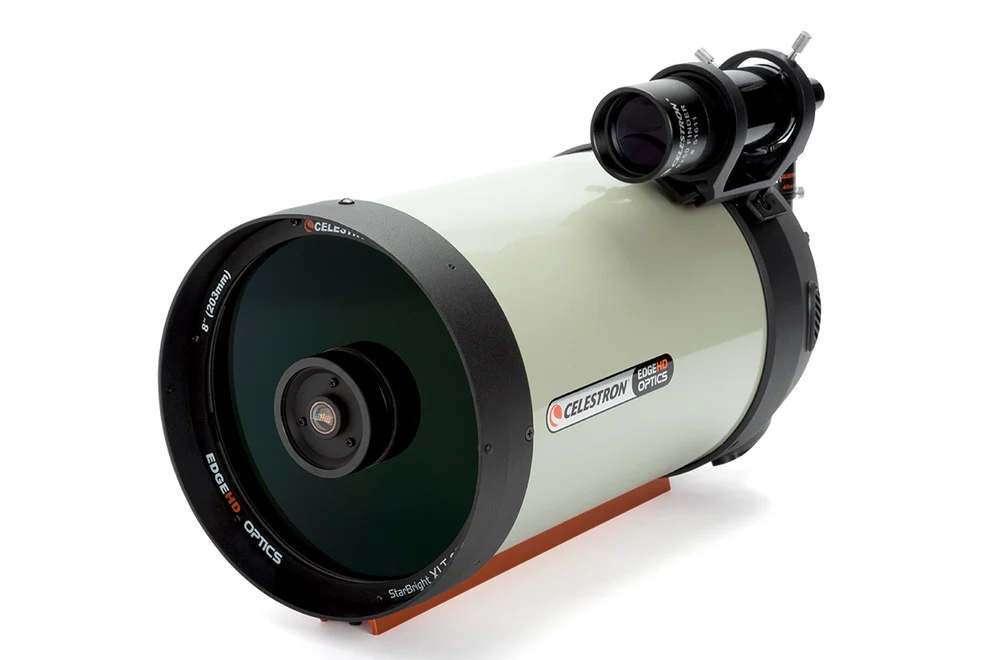

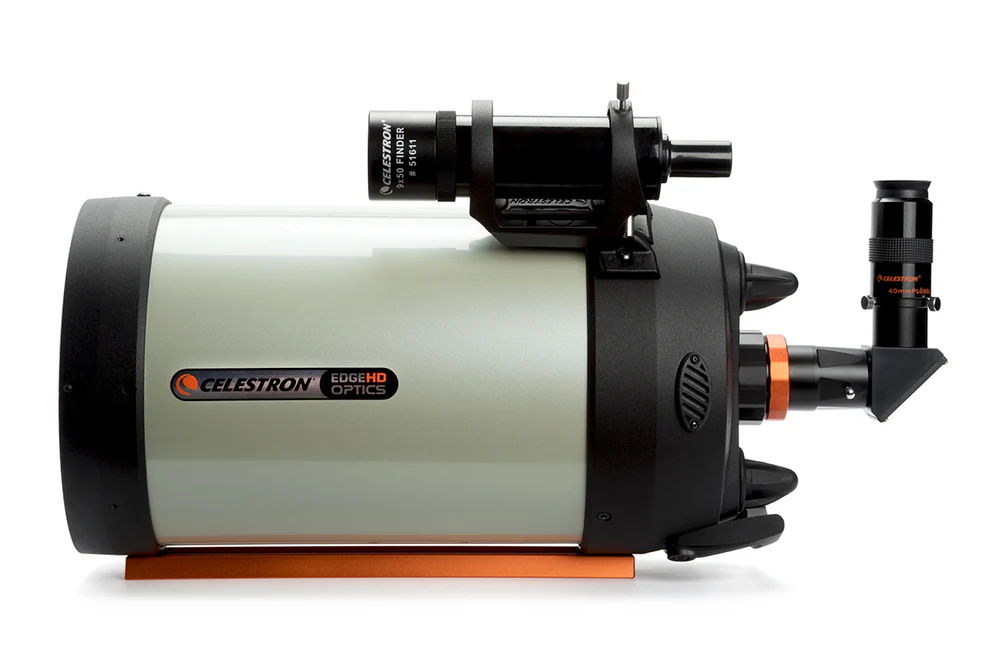

Celestron EdgeHD 8″ Optical Tube Assembly

The Celestron EdgeHD 8″ Optical Tube Assembly represents a significant evolution of the classic Schmidt-Cassegrain telescope design, combining the compact form factor and long focal length advantages of an SCT with optical refinements specifically developed for high-quality imaging. With its 203mm aperture and 2032mm focal length, it provides a versatile platform for both demanding visual observation and astrophotography.

Unlike a traditional Schmidt-Cassegrain, the EdgeHD optical system is designed as an aplanatic, flat-field telescope, correcting common optical issues such as field curvature and off-axis coma. This produces sharper stars across a much larger portion of the image field, making the telescope particularly well suited to astrophotographers using DSLR, mirrorless, and dedicated astronomy cameras with larger sensors.

The 8-inch primary mirror provides substantial light-gathering capability, making the EdgeHD 8″ a highly capable instrument for exploring a wide range of astronomical objects. The long 2032mm focal length provides excellent image scale for detailed lunar and planetary imaging, while also offering the resolving power required for compact deep-sky objects such as galaxies, planetary nebulae, and globular clusters.

For visual observers, the telescope delivers the classic SCT experience: a large aperture combined with a compact optical tube. The high focal length makes it particularly effective for higher-magnification observations, while the 8-inch aperture provides bright, detailed views of a broad range of targets.

Astrophotographers benefit from the EdgeHD’s flexible optical design. Used in its native configuration, the telescope operates at 2032mm focal length and f/10, providing the image scale required for smaller targets. Adding the dedicated 0.7× EdgeHD focal reducer converts the system to approximately 1422mm focal length at f/7, increasing imaging speed while maintaining the telescope’s corrected optical performance. For users seeking extremely fast wide-field imaging, EdgeHD tubes are also compatible with HyperStar systems, enabling approximately f/2 operation with suitable accessories.

Mechanical refinements make the EdgeHD 8″ particularly suitable for imaging applications. The optical tube includes rear-cell ventilation with integrated filters to help release warm air trapped behind the primary mirror, while mirror support mechanisms help reduce image shift during long-exposure astrophotography.

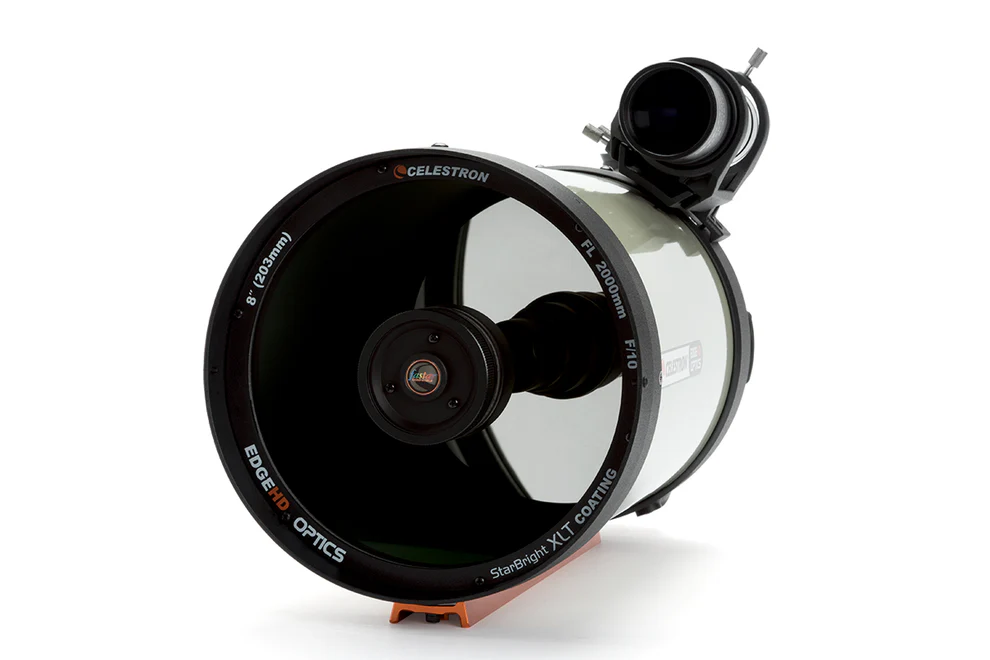

Celestron’s StarBright XLT coatings maximise light transmission throughout the optical system, improving contrast and brightness for both visual observation and imaging. Combined with the EdgeHD’s corrected optics, these coatings help deliver clean, high-contrast views with excellent detail.

The telescope is supplied with a CGE dovetail bar, making it compatible with mounts equipped with a suitable CGE/Losmandy-style saddle. Its relatively compact optical tube compared with many long-focus telescope designs makes it a practical choice for astronomers who want serious aperture without moving to a much larger and less manageable instrument.

The Celestron EdgeHD 8″ is therefore a highly adaptable telescope: a powerful visual instrument, a high-resolution planetary imaging system, and a capable deep-sky astrograph that can evolve as the user’s equipment and experience grow.
