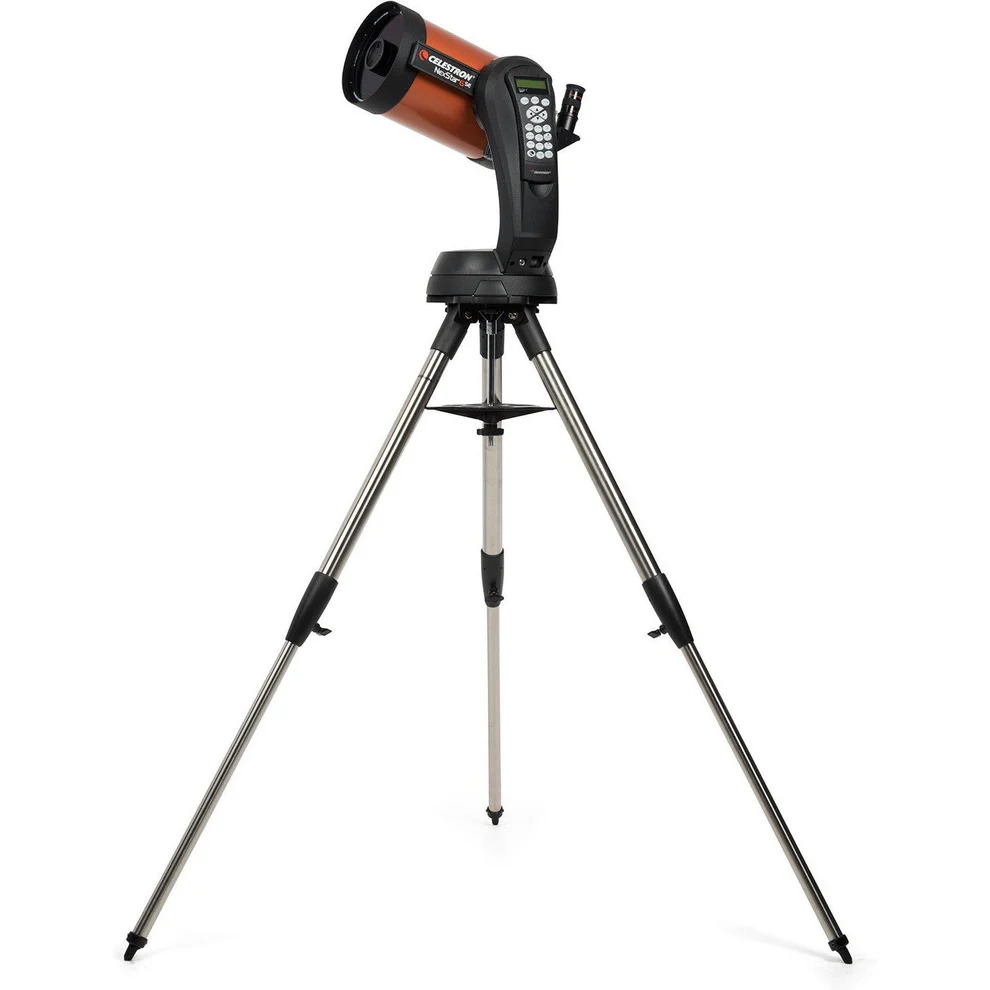

Celestron NexStar 6SE – Computerized Telescope

The Celestron NexStar 6SE is a widely used 6-inch Schmidt-Cassegrain telescope system that combines a 150mm optical tube with a computerised single-arm GoTo alt-azimuth mount. It is designed primarily as a portable and easy-to-operate visual astronomy platform, while also offering a clear upgrade path into entry-level astrophotography through optional accessories.

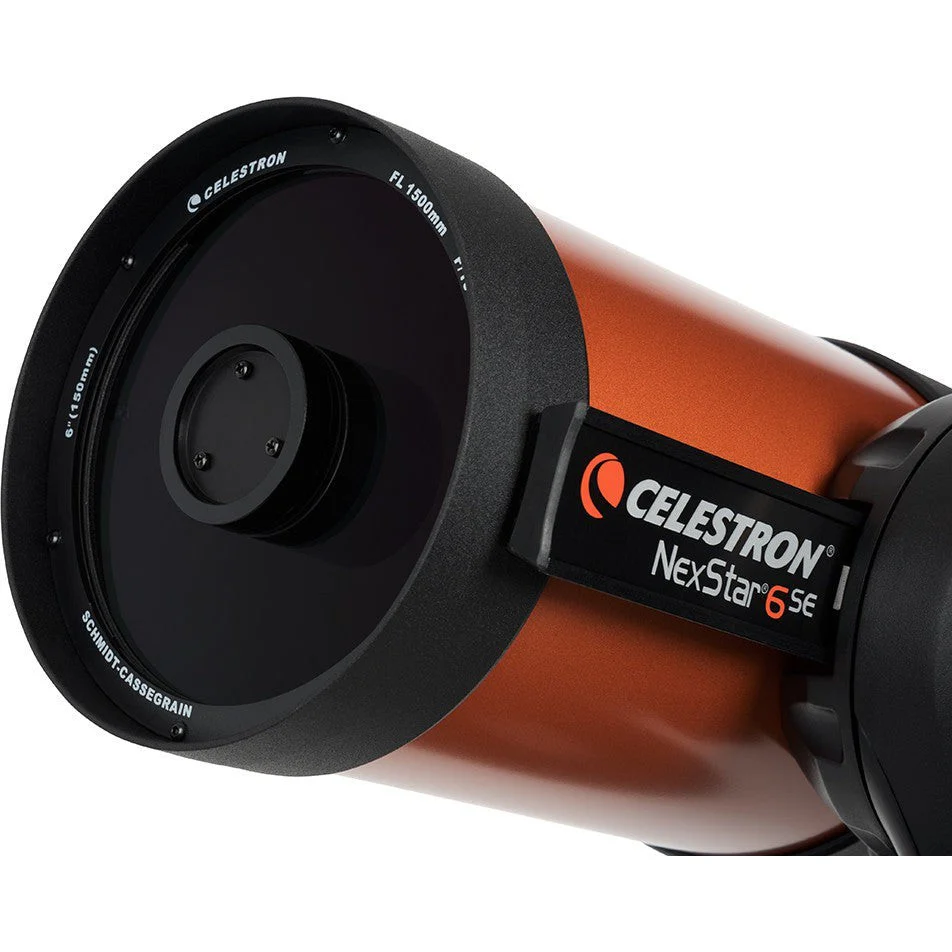

At its core is a 150mm (6-inch) Schmidt-Cassegrain optical system with a 1500mm focal length operating at f/10. This configuration provides strong high-magnification performance, making the telescope particularly well suited to detailed observation of the Moon, planets, and double stars. It also performs well on brighter deep-sky objects such as globular clusters, planetary nebulae, and compact galaxies under dark skies.

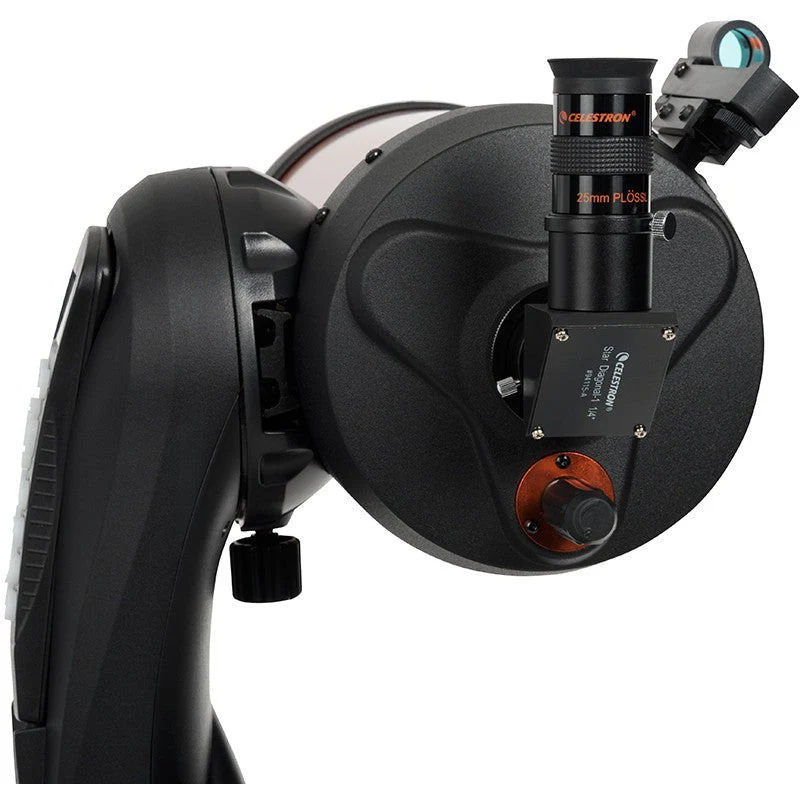

The optical system uses a spherical primary mirror paired with a Schmidt corrector plate at the front of the tube and a convex secondary mirror mounted on the corrector assembly. This folded optical design enables a long effective focal length in a compact and highly portable tube. Celestron’s StarBright XLT coatings further enhance light transmission and image contrast, improving fine detail visibility across a range of targets.

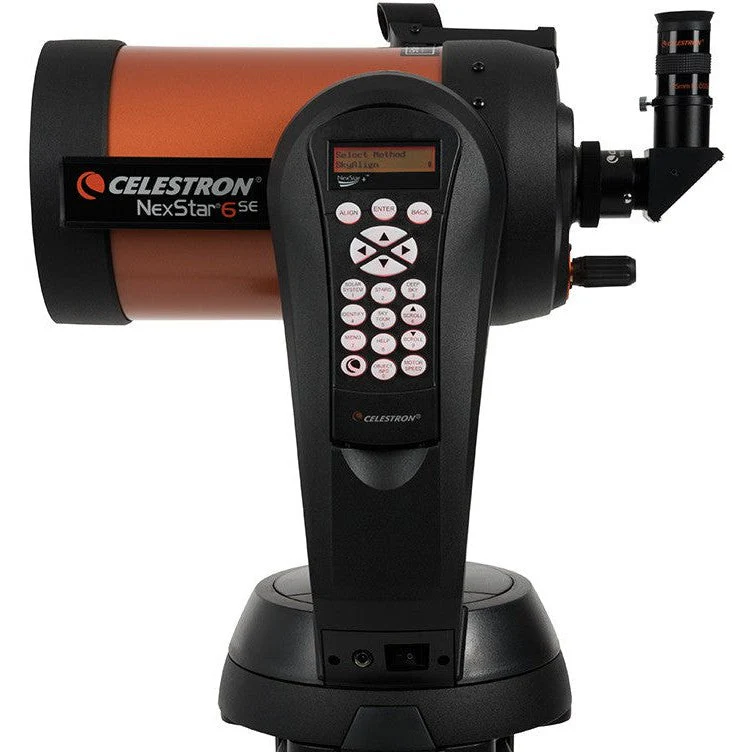

The NexStar SE mount is a computerised single-arm fork system operating in alt-azimuth mode. Using Celestron’s SkyAlign system, the telescope can automatically align itself on the night sky and track objects from a database of over 40,000 celestial targets. In this configuration, the system is highly effective for visual observing and short-exposure astrophotography of bright targets such as the Moon, planets, and bright star clusters, where field rotation does not significantly impact image quality.

Upgradeable system architecture

A key strength of the NexStar SE platform is its modular upgrade path, which significantly extends its capabilities beyond basic visual use.

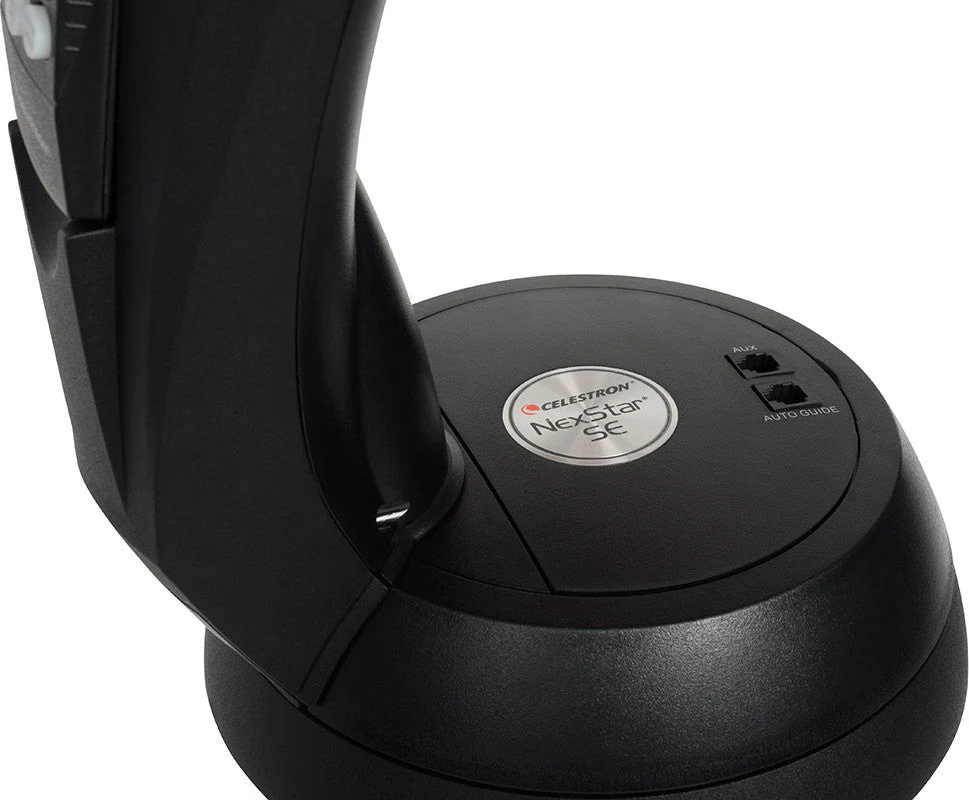

The system is compatible with the Celestron SkyPortal WiFi module, an optional accessory that connects to the mount’s AUX port and enables wireless telescope control via smartphone or tablet. When paired with applications such as SkySafari, users gain full GoTo control, alignment, and object navigation without the hand controller, modernising the system’s interface without modifying the core mount electronics.

For astrophotography expansion, the NexStar 6SE is also compatible with an optional equatorial wedge (available for SE 6 and SE 8 models). When installed, the mount transitions from alt-azimuth tracking to equatorial-style tracking, significantly reducing field rotation and enabling longer-exposure deep-sky astrophotography. While still considered an entry-level imaging configuration, this upgrade substantially increases the system’s astrophotography potential when combined with appropriate guiding and camera equipment.

Mechanically, the system is designed for portability and rapid setup. The optical tube detaches easily from the mount, and the entire system remains compact enough for travel and storage in small spaces. Despite its modest size, the 6-inch aperture provides strong resolving power for planetary detail and solid general-purpose observing performance.

Overall, the NexStar 6SE functions as a flexible, upgradeable astronomy system: primarily optimised for visual use, but with a clearly defined pathway into wireless control and equatorial astrophotography through optional accessories.
